WDS2
DIGG FREE FLOOR SPRING FOR WOODEN DOOR
Hold open on 90-150 degree, it can be closed automatically less than 90 degree.
Dig free floor spring, needs a min door thickness of at least 40mm, as the width reaches 33mm the edge needs at least 3mm, so the spring can be hidden side the door.
Min door thickness: 40mm, max to 60mm.
- Aluminum Material Plate for SS304 with satin finish
- With up steel pivot hinge
- Loading weight: 100kgs
- View / Download Specifications Sheet

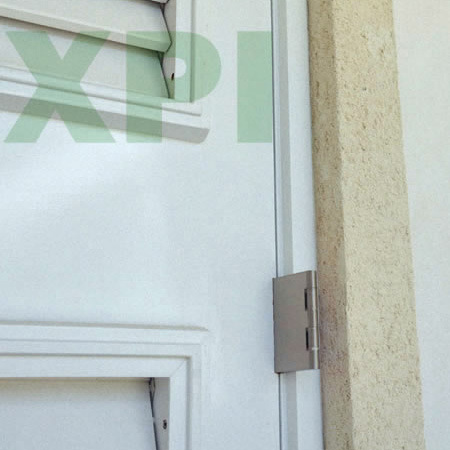

H12
STAINLESS STEEL HINGE
- Grade 304
- Size: 4.5" x 4.5" x 3mm
- View / Download Specifications Sheet
HAS3D
3D ADJUSTABLE SOSS HINGE
- Finish: SNP
- Size: 160x28x28x32mm
- Min Door Thickness: 40mm
- Weight Capacity: 80kg/2pcs
- View / Download Specifications Sheet 1
- View / Download Specifications Sheet 2
HC09
ZINC ALLOY CONCEAL HINGE
- Material: Zinc alloy with satin nicke plated finish
- Width: 19mm, length:95mm
- Works with door thickness: 25-40mm
- Loading weight: 25kg/PCS

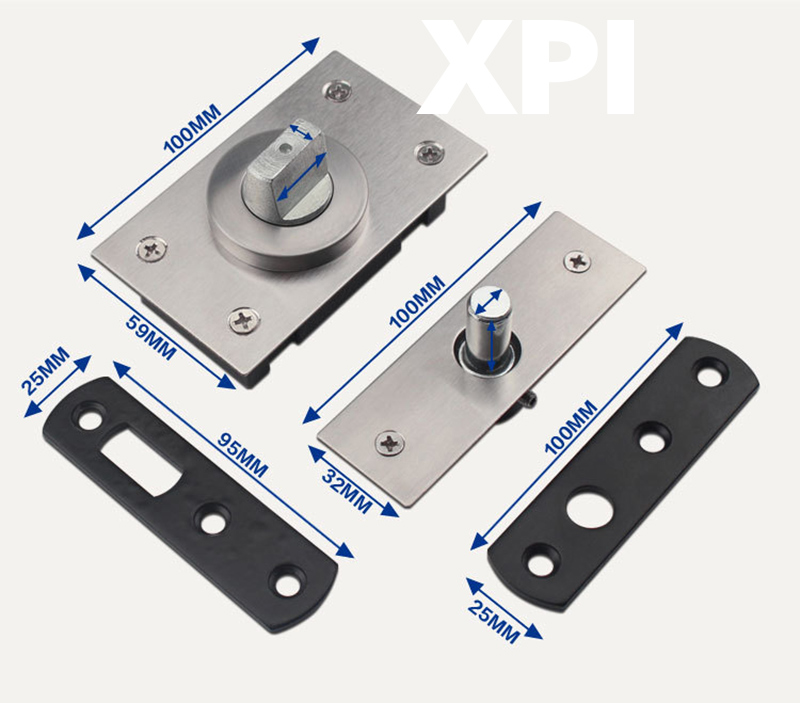

H8
PIVOT HINGE
360° Pivot Hinge for heavy duty door.
- Material: Stainless steel
- Max Loading Weight: 120kg
H1
Rising Butt LH or RH
H2
STAINLESS STEEL BUTTS
Fire Rated up to 3 hours
- Grade 304 and Grade 316
- Various sizes
- View / Download Specifications Sheets 3X2|3X3|4X3|4X4

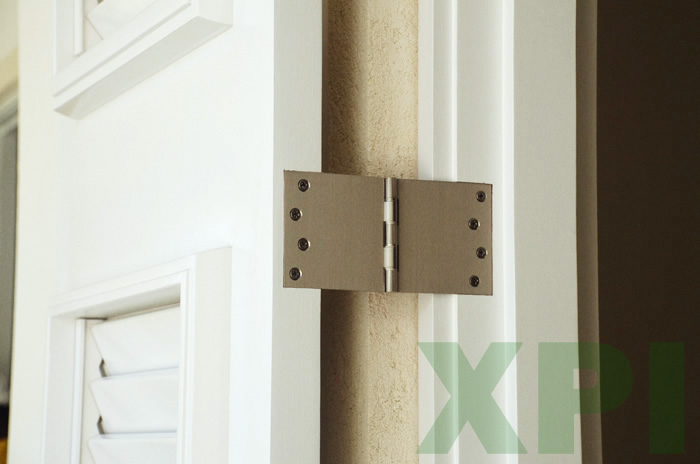

H3
PARLIAMENT HINGES
- Finish: SC
- Various sizes
- View / Download Specifications Sheets 4" X 4" X 6" X 4MM
| 4" X 3" X 5" X 4MM | 4" X 2" X 4" X 4MM|
H5
DOUBLE ACTION HINGE
4" double action spring hinge can work with door thickness from 22-25mm.
- Finish: SSS
- 4”
- Loading weight: 25kgs
- View / Download Specifications Sheet
H6
Projection Hinge
- Finish: SN
- Size 4" x 8" x 5mm
- 14mm Knuckle
- W/Double Phosphor washers
- View / Download Specifications Sheet
